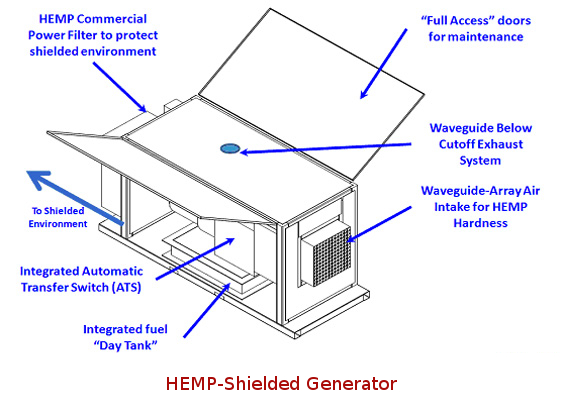

HEMP Resistant Electrical Generators / Hardened Structures HEMP/GMD Shielded Generators

Hardened Structures offers High-Altitude Electromagnetic Pulse/Geo-magnetic Disturbance (HEMP/GMD) shielded generators as the perfect addition to your hardened or unhardened shelter, home, or commercial/institutional facilities.


The HEMP protected electrical systems detailed below are designed to U.S. DOD Military specifications and are full, stand-alone systems. Commercial and residential systems are available at lower costs.

HS-60G

Cost $85,000.00 USD

HS-60G provides up to 60kW/60Hz of backup power in an integrated, shielded package so that you are never without power. Configurable to 50Hz options for worldwide delivery.

Recommended for hardened facilities that are larger than 7500 sq. ft. or facilities with unusual requirements that must have power after a large-scale electromagnetic or other grid-interrupting event

The HS-60G offers:

  • Military-grade HEMP/GMD protection – built in compliance with MIL-STD-188-125-1 “High Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time Urgent Missions Part 1 Fixed Facilities” (100dB of shielding up to 1GHz)
  • HEMP Protected Automatic Transfer Switch – with automated generator periodic testing, so your generator is always ready
  • HEMP Protected fuel supply for up to 24 hours of continuous operation, with external, HEMP-Protected Tanks available.
  • HEMP Protected Digital Control System – with options for internet monitoring
  • Accessible Design elements so that Generator Maintenance can be easily accomplished
  • Skid-mounted design for easy installation
  • Footprint of 130″L x 52″W x 60″H
  • 3-phase operation
  • Available Maintenance, Monitoring and Provisioning through secure Hardened Structures Trusted Logistics, (HSTL)
  • UPS Integration, as required.

130x52x60 would house the following:

  • 60kw 60Hz 120/208 3p4w Standby Generator
  • 55kw 60Hz 120/208 3p4w Prime Generator
  • 50kw 50Hz 127/222 3p4w Standby Generator
  • 45kw 50Hz 127/222 3p4w Pime Generator

Along with one of the above generators would be a 200Amp GE ATS and a 225Amp Corcom filter

HS-28G

Cost $69,000.00 USD

HS-28G provides up to 28kW/60Hz of backup power in an integrated, shielded package so that you are never without power. Configurable to 50Hz options for worldwide delivery.

Recommended for hardened facilities that are larger than 3500 sq. ft. requiring power after a large-scale electromagnetic or other grid-interrupting event

The HS-28G offers:

  • Military-grade HEMP/GMD protection – built in compliance with MIL-STD-188-125-1 “High Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time Urgent Missions Part 1 Fixed Facilities” (100dB of shielding up to 1GHz)
  • HEMP Protected Automatic Transfer Switch – with automated generator periodic testing, so your generator is always ready
  • HEMP Protected fuel supply for up to 24 hours of continuous operation, with external, HEMP-Protected Tanks available.
  • HEMP Protected Digital Control System – with options for internet monitoring
  • Accessible Design elements so that Generator Maintenance can be easily accomplished
  • Skid-mounted design for easy installation
  • Footprint of 130″L x 52″W x 60″H
  • 3-phase operation
  • Available Maintenance, Monitoring and Provisioning through secure Hardened Structures Trusted Logistics, (HSTL)
  • UPS Integration

108x42x60 would house the following:

  • 28kw 60Hz 120/208 3p4w Standby Generator
  • 26kw 60Hz 120/208 3p4w Prime Generator
  • 23kw 50Hz 127/222 3p4w Standby Generator
  • 20kw 50Hz 127/222 3p4w Pime Generator

Along with one of the above generators would be a 100Amp GE ATS and a 100Amp Corcom filter

HS-13G

Cost $51,000.00 USD

HS-13G provides up to 28kW/60Hz of backup power in an integrated, shielded package so that you are never without power. Configurable to 50Hz options for worldwide delivery.

Recommended for any hardened facility requiring backup power after a large-scale electromagnetic or other grid-interrupting event

The HS-13G offers:

  • Military-grade HEMP/GMD protection – built in compliance with MIL-STD-188-125-1 “High Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time Urgent Missions Part 1 Fixed Facilities” (100dB of shielding up to 1GHz)
  • HEMP Protected Automatic Transfer Switch – with automated generator periodic testing, so your generator is always ready
  • HEMP Protected fuel supply for up to 24 hours of continuous operation, with external, HEMP-Protected Tanks available.
  • HEMP Protected Digital Control System – with options for internet monitoring
  • Accessible Design elements so that Generator Maintenance can be easily accomplished
  • Skid-mounted design for easy installation
  • Footprint of 78″L x 36″W x 60″H
  • 208/120v or 3 phase options
  • Available Maintenance, Monitoring and Provisioning through secure Hardened Structures Trusted Logistics, (HSTL)
  • UPS Integration

78x36x60 would house the following:

  • 13kw 60Hz 120/208 3p4w Standby Generator
  • 12kw 60Hz 120/208 3p4w Prime Generator
  • 10kw 50Hz 127/222 3p4w Standby Generator
  • 9kw 50Hz 127/222 3p4w Pime Generator

Along with one of the above generators would be a 80Amp GE ATS and a 60Amp Corcom filter

HS-Micro-G

Cost $2,500 USD (does not include generator)

HS-Micro-G provides a protected environment for your own consumer-grade generator. This shield generally fits generators under 10kW in capacity or smaller that are typically purchased at building supply/warehouse store. If you have already purchased a home generator we can custom fabricate a HEMP shielded enclosure.

Recommended for any facility, hardened or unhardened requiring backup power after a large-scale electromagnetic event

The HS-Micro-G offers:

  • Military-grade HEMP/GMD protection – built in compliance with MIL-STD-188-125-1 “High Altitude Electromagnetic Pulse (HEMP) Protection for Ground-Based C4I Facilities Performing Critical, Time Urgent Missions Part 1 Fixed Facilities” (100dB of shielding up to 1GHz)
  • Footprint of 60″L x 42″W x 42″H
  • Available Maintenance, Monitoring and Provisioning through secure Hardened Structures Trusted Logistics, (HSTL)
  • UPS Integration

78x36x60 would house the following:

  • 13kw 60Hz 120/208 3p4w Standby Generator
  • 12kw 60Hz 120/208 3p4w Prime Generator
  • 10kw 50Hz 127/222 3p4w Standby Generator
  • 9kw 50Hz 127/222 3p4w Pime Generator

Along with one of the above generators would be a 80Amp GE ATS and a 60Amp Corcom filter

Lower Cost Models Available.

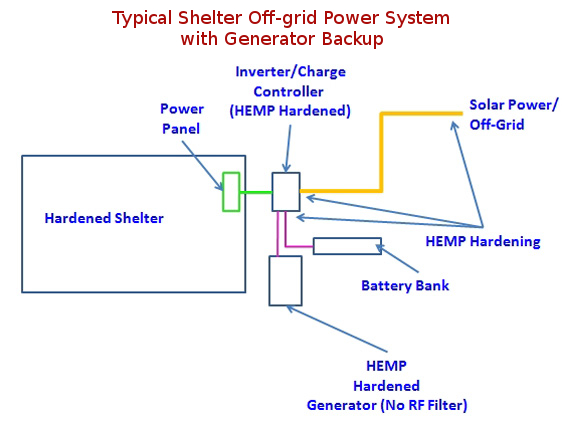

For alternative energy and off grid systems

Emp engineering can custom design, fabricate and install a HEMP shielded system for your off-grid alternative energy system
